2.3.4. CN5000 Cables
Cornelis offers a line of certified QSFP112 cables for use with CN5000 Omni-Path products.
Cables are offered in the following types and lengths:
Direct Attach Copper (DAC) Passive Cables - 0.5 to 3.0 meters
Active Copper Cables (ACC) - 3.0 to 5.0 meters

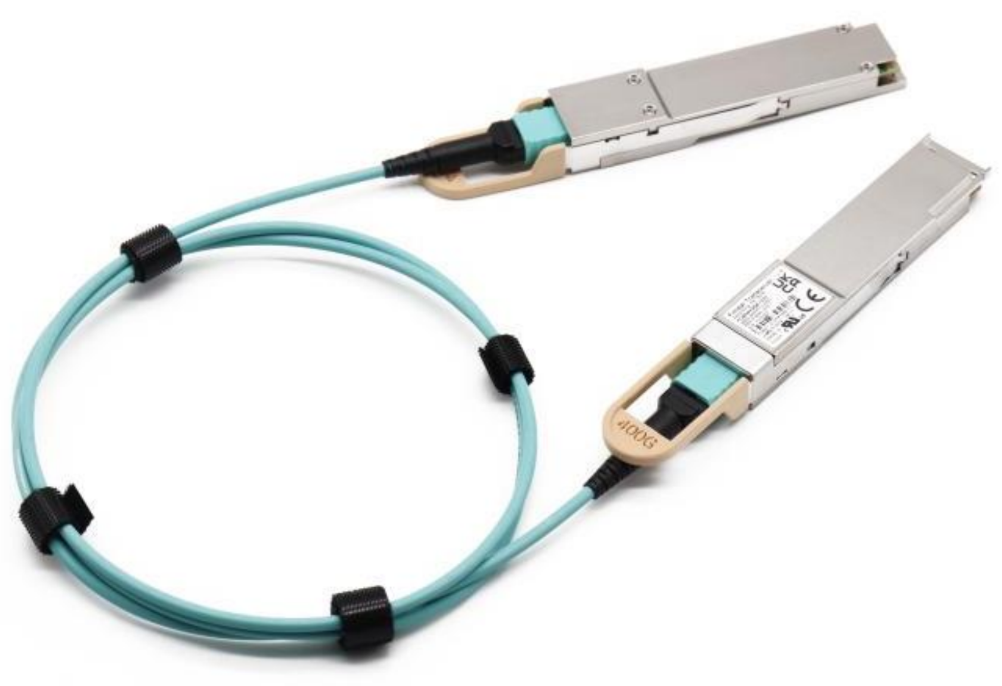

Active Optical Cables (AOC) - 5.0 to 100.0 meters
Cable types include:

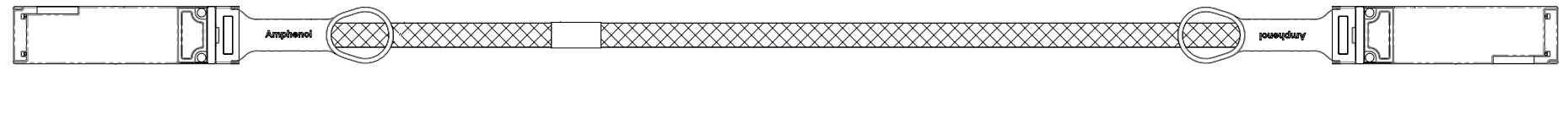

Straight Cables (Q-Q): 400G QSFP to 400G QSFP
DAC and ACC Cables
AOC Cables

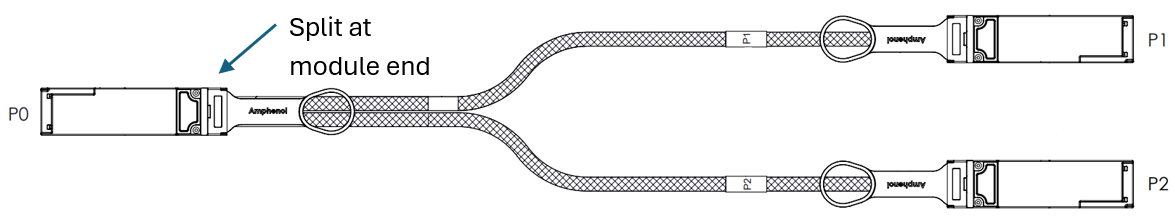

Split Cables: 400G QSFP to 2 x 200G QSFP - Available in copper variants only and supports port subdivision
DAC and ACC Cables

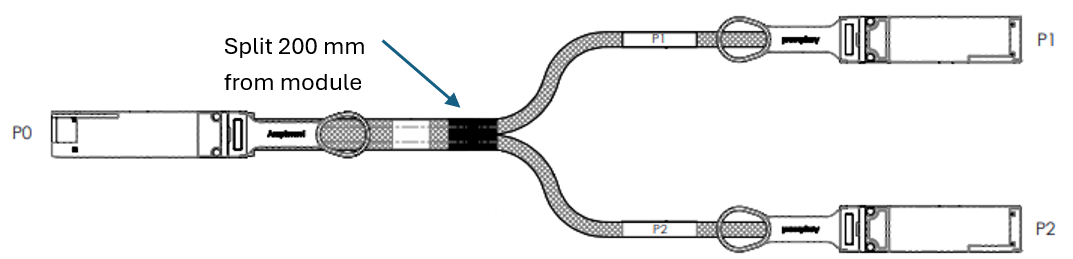

Reverse Split Cables: 800G QSFP-DD to 2 x 400G QSFP - Enables connectivity of the dual-port SuperNIC to two Switch ports
DAC and ACC Cables
The available cable offerings are shown in the following table:
Cable | Type | Length (m) | Diameter (mm) | Bend Radius, min (mm) | Split Point | Split Length |
|---|---|---|---|---|---|---|
DAC | Q-Q | 0.5-2.0 | 5.56 | 31 | n/a | n/a |
Q-Q | 2.5-3.0 | 6.6 | 37 | n/a | n/a | |
Split | 1.0-2.0 | 4.5 | 25 | @ module | full | |
Split | 2.5-3.0 | 5.02 | 25 | @ module | full | |
Reverse split | 1.0-2.0 | 11.2 (DD)/ 5.6 (Q) | 56 (DD-lateral) 28 (DD-vertical, Q) | @DD module = 200 mm | length- 0.2 | |
Reverse split | 2.5-3.0 | 12.0 (DD)/ 6.0 (Q) | 60 (DD-lateral) 30 (DD-vertical, Q) | @DD module = 200 mm | length- 0.2 | |
ACC | Q-Q | 3.0 | 5.57 | 31 | n/a | n/a |
Q-Q | 4.0-5.0 | 6.6 | 37 | n/a | n/a | |
Split | 3.0 | 4.5 | 25 | @ module | full | |
Split | 4.0-5.0 | 5.5 | 25 | @ module | full | |
Reverse split | 3.0 | 11.2 (DD)/ 5.6 (Q) | 56 (DD-lateral, vertical) 28 (Q) | @DD module = 200 mm | length- 0.2 | |
AOC | Q-Q | 5-30 | 70 | n/a | n/a |
